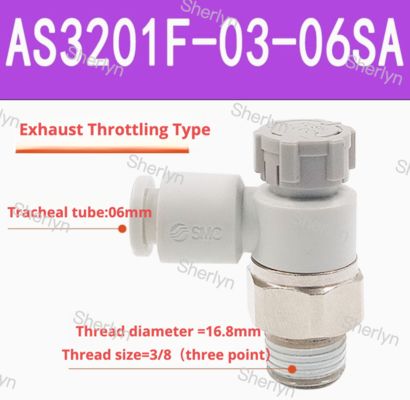

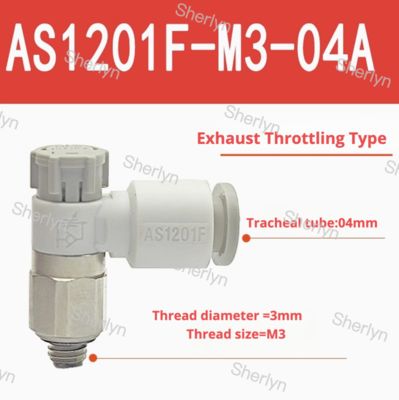

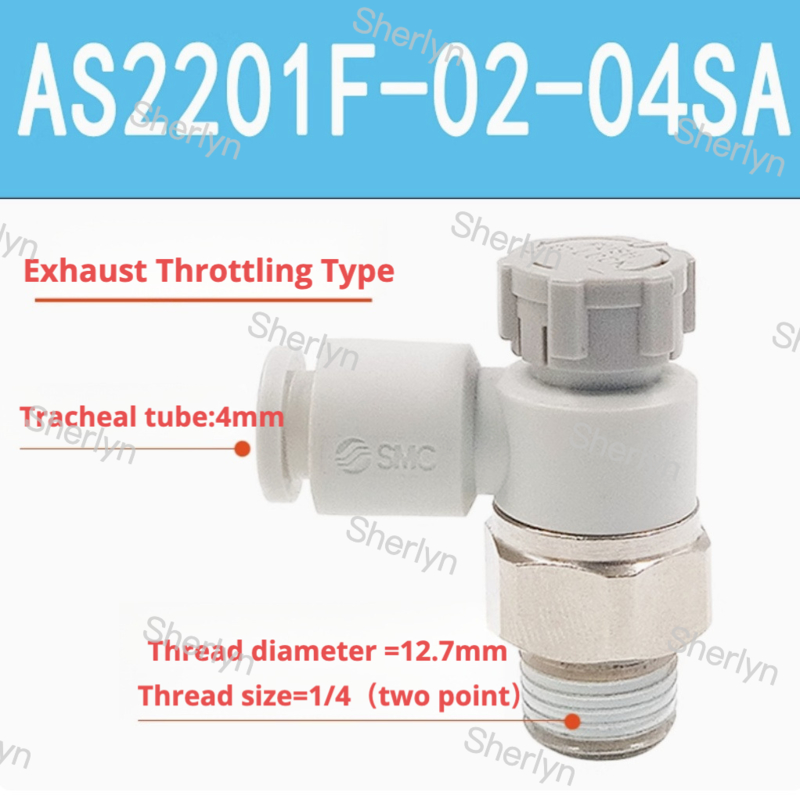

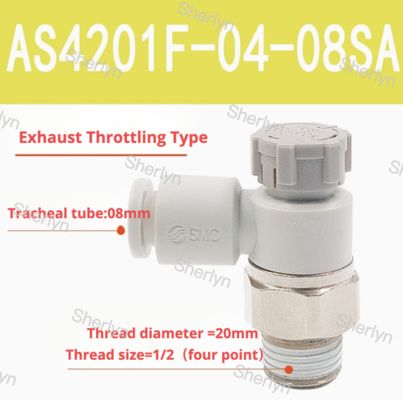

SMC Pneumatic Throttle Control Valve Connector AS1201F-M3-02

Product Description:

Enhanced Visibility and Scale:

Many models feature a scale window for numerical flow management, with some including a vernier for precise 1/4-scale settings. The scale is visible from 360 degrees, improving accessibility for inspection and maintenance.

Ergonomic and Efficient Operation:

The push-to-lock mechanism enhances needle valve locking operation, making setup faster and reducing setup time and potential errors. Some models also have a larger knob diameter (approximately twice as large) for easier adjustment.

Space-Saving and Lightweight Design:

The compact design saves space, and some models achieve weight reduction of about 27%.

Easy Installation and Connection:

Tube insertion and removal are facilitated with reduced insertion force (by up to 30%) and withdrawal force (by up to 20%) while maintaining pull-out strength. The 360° free orientation piping capability (in elbow/universal types) allows for flexible installation.

Durability and Specialized Specifications:

Constructed with metal bodies (e.g., zinc alloy) or specific materials for standard use, with some offering stainless steel for corrosion resistance. Non-electrolytic nickel plating is standardized for some components. Options include cleanroom (low-dust generation) and corrosion-resistant models.

Integrated Functions:

Certain variants combine a speed control valve with other functions, such as a residual pressure release valve (for one-button exhaust) or a pilot-operated check valve (for cylinder speed control and temporary intermediate stopping).

Applications:

SMC's AS series speed control valves are primarily utilized for regulating the speed of pneumatic actuators by controlling the flow of compressed air.

Low-Speed Control: These valves are specifically engineered for low-speed control applications, such as achieving cylinder movement speeds ranging from 1 mm/s to 50 mm/s or 50 mm/s to 150 mm/s.

General Speed Regulation in Pneumatic Systems: They are used for meter-out flow control (usually through exhaust port throttling) in one direction, while allowing unrestricted flow in the opposite direction thanks to a built-in check valve. This allows for simple and consistent speed adjustment.

Applications Requiring Compact and Efficient Components: Their compact and lightweight design makes them ideal for use in machinery and systems where space optimization is critical.

Specialized Environments: Specific variations of these valves are available for use in cleanrooms (reducing dust generation) and environments that demand materials resistant to corrosion.

I trust that this translation and overview offer valuable insights into the capabilities of the SMC AS series speed control valves. If you need more detailed information about a specific model or application, please don't hesitate to inquire further.
