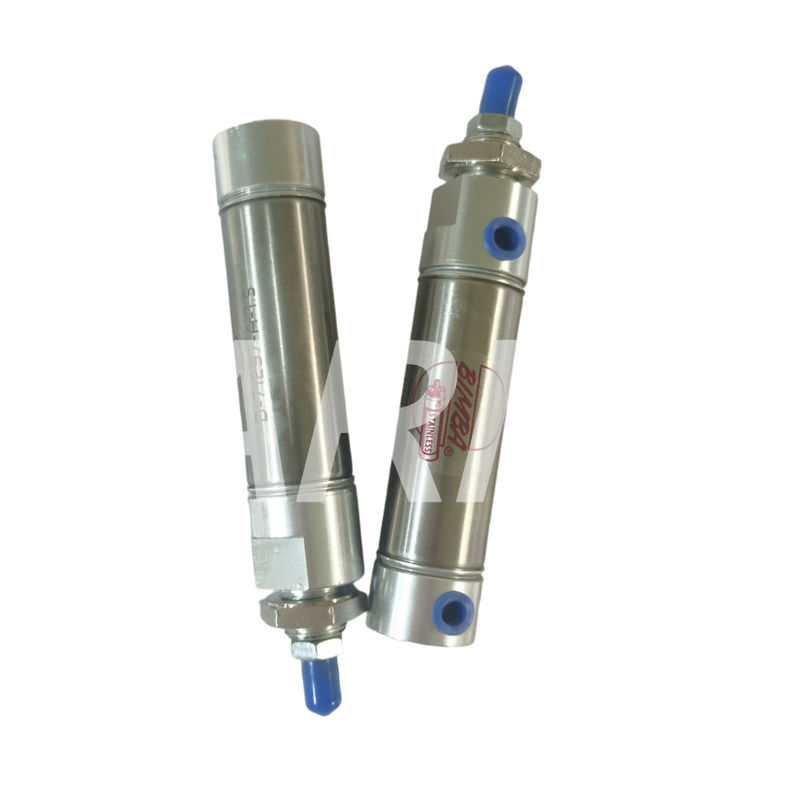

FMD-5010-3L Pneumatic cylinders (IMI Bimba) FMD-5010-3

Product Description:

General Cylinder Attributes

Type:

• Single-acting cylinder (spring return)
• Double-acting cylinder (pneumatically driven in both directions)
• Rodless cylinder, compact cylinder, rotary cylinder, etc.

Bore Size:

Common specifications: Φ6mm–Φ200mm (Bimba cylinders may focus on small to medium bores, e.g., Φ12mm–Φ100mm).

Stroke:

Customizable, typically ranging from a few millimeters to several meters.

Operating Pressure Range:

Standard: 0.1–1.0 MPa (some high-pressure models can reach 1.5 MPa).

Material:

• Cylinder body: Aluminum alloy, stainless steel (corrosion-resistant);
• Piston rod: Hard chrome-plated steel or stainless steel;
• Seals: NBR, polyurethane (oil- and wear-resistant).

Cushioning Method:

Adjustable air cushioning, elastic cushioning, or no cushioning.

Mounting Style:

Flange mount, foot mount, trunnion mount, etc.

Environmental Adaptability:

• Temperature range: -20°C to +80°C (special models can extend beyond);
• Protection rating: IP65 (dustproof and waterproof).

Technical Parameters:

Applications:

The BIMBA Piston Pneumatic Cylinder is a versatile product that can be used in a variety of applications and scenarios due to its high-quality design and performance. Here are some of the product application occasions and scenarios where the BIMBA Piston Pneumatic Cylinder excels:

1. Industrial Automation: The BIMBA Piston Pneumatic Cylinder is ideal for industrial automation processes that require precise and reliable linear motion control. Its double-acting operation allows for both extending and retracting movements, making it suitable for tasks such as material handling, pick-and-place operations, and assembly line automation.

2. Manufacturing Machinery: The BIMBA Piston Pneumatic Cylinder can be used in various manufacturing machinery applications, including packaging machines, stamping equipment, and injection molding machines. Its robust construction and ability to operate at temperatures ranging from -29° to 95°C make it a reliable choice for demanding manufacturing environments.

3. Robotics: The BIMBA Piston Pneumatic Cylinder is well-suited for use in robotic systems that require precise and repeatable linear motion. Its compatibility with compressed air as the media makes it easy to integrate into existing pneumatic systems used in robotic applications.

4. Automotive Industry: The BIMBA Piston Pneumatic Cylinder can be employed in the automotive industry for tasks such as door opening/closing mechanisms, brake systems, and engine components. Its single/double-acting operation and high operating pressure range of 0.06 MPa to 1.2 MPa make it suitable for a wide range of automotive applications.

5. Material Handling: The BIMBA Piston Pneumatic Cylinder is an excellent choice for material handling equipment, such as lift tables, conveyors, and palletizers. Its compact design, high supply ability of 5000 pieces per month, and quick delivery time of 1-7 work days after payment ensure that material handling systems can be efficiently maintained and upgraded.

Overall, the BIMBA Piston Pneumatic Cylinder is a reliable and versatile product that can enhance the performance and efficiency of various industrial applications. With its CE certification, flexible payment terms, and durable packaging options, this air piston cylinder is a valuable investment for businesses looking to improve their automation and manufacturing processes.

Packing and Shipping:

Product Packaging:

The Piston Pneumatic Cylinder will be carefully packaged in a sturdy cardboard box to ensure safe transportation. The cylinder will be secured with foam padding to prevent any damage during shipping.

Shipping:

Orders for the Piston Pneumatic Cylinder will be processed and shipped within 1-2 business days. We offer standard shipping options as well as expedited shipping for urgent orders. Customers will receive a tracking number to monitor the status of their shipment.
