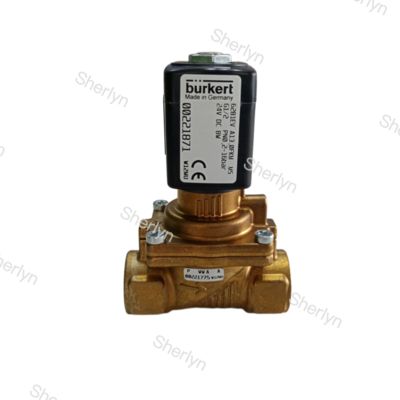

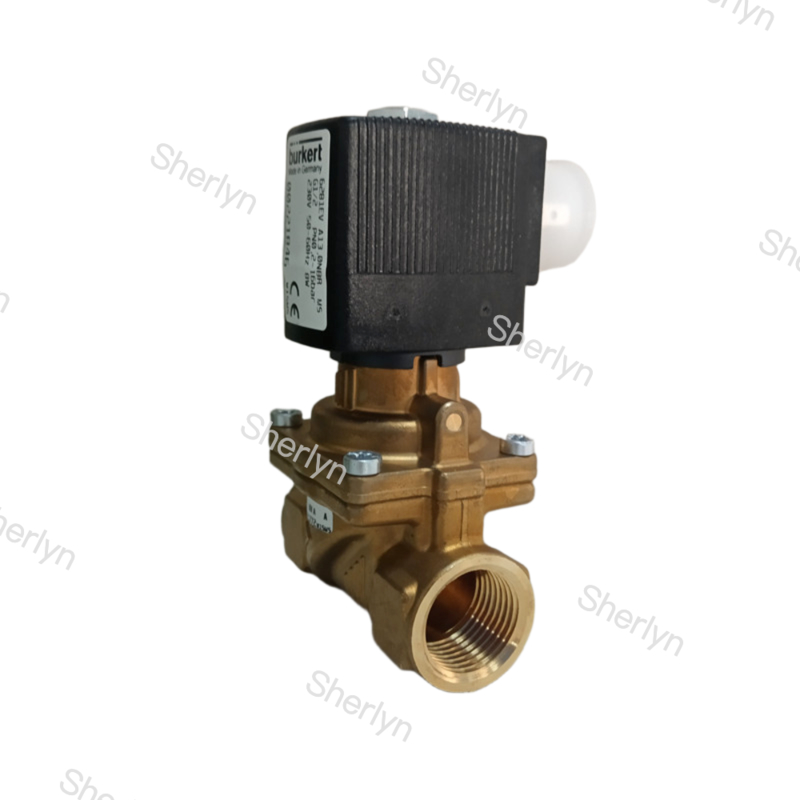

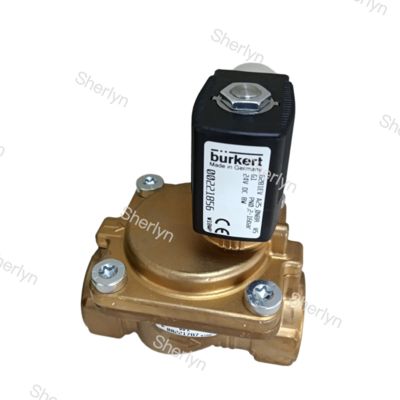

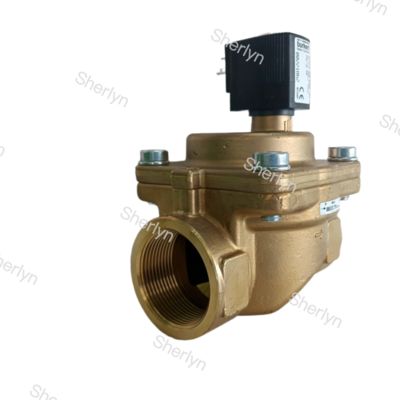

6281 Type G3/8 BURKERT Solenoid Valve 00221896 AC24V

Product Description:

The Burkert 6281 solenoid valve is designed with several practical features to ensure reliability and long lifespan in challenging operating conditions.

Rigorous material and sealing selection: The valve body is constructed of brass material that meets industry standards and exhibits strong resistance to zinc corrosion. The key EPDM seals offer exceptional heat resistance, ozone aging resistance, and resistance to specific chemicals. The medium temperature range is broad, with EPDM seals paired with epoxy resin coils capable of reaching temperatures up to +100°C.

Servo-assisted working principle: The valve operates using a pilot-operated system that utilizes the pressure difference of the medium itself to open or close the main valve port.

Excellent energy-saving and noise reduction performance: The coil segment can be equipped with a "Kick and Drop" energy-saving electronic circuit (dual coil technology), which supplies high current during startup and then shifts to low current maintenance post-startup. This setup effectively reduces power consumption and coil heating.

Convenient installation and maintenance: The solenoid valve can be installed in various positions as needed, preferably with the coil facing upwards.

High level of safety and adaptability: When used in combination with standard DIN EN 175301-803 A-type cable plugs, the protection level can reach IP65, effectively guarding against dust and water ingress. The coil is encased in chemically resistant epoxy resin, enhancing durability in harsh environments.

Applications:

This solenoid valve, known for its exceptional material properties, reliable sealing, and adaptable configuration, is primarily designed for a range of applications:

Water and Water Supply System: Featuring a brass valve body that complies with European drinking water standards, this valve is safe for use in drinking water treatment systems, irrigation or sprinkler systems, swimming pool water circulation, and commercial car washing equipment to regulate water and compressed air.

Specific Fluid Medium: Utilizing the remarkable properties of EPDM (ethylene propylene diene monomer) sealing material, this valve is especially suited for controlling oil-free, fat-free media, as well as hot water (with a broad temperature range, e.g., +100 °C for EPDM sealing with epoxy resin coils), , alkaline aqueous solutions, and more.

General Industrial Applications: This valve performs reliably in compressed air systems, vacuum systems, and heating and cooling circuits within the general industrial sector, catering to diverse industries like chemical, pharmaceutical, food and beverage, metallurgy, power, papermaking, and environmental protection.
